Updates

2013 March 26 update: Helmsman's platform for PT 314-367 corrected.

2011 October 15 update: Helmsman's rubber mat and platform added.

2011 October 9 update: Helm updated to Elco drawings.

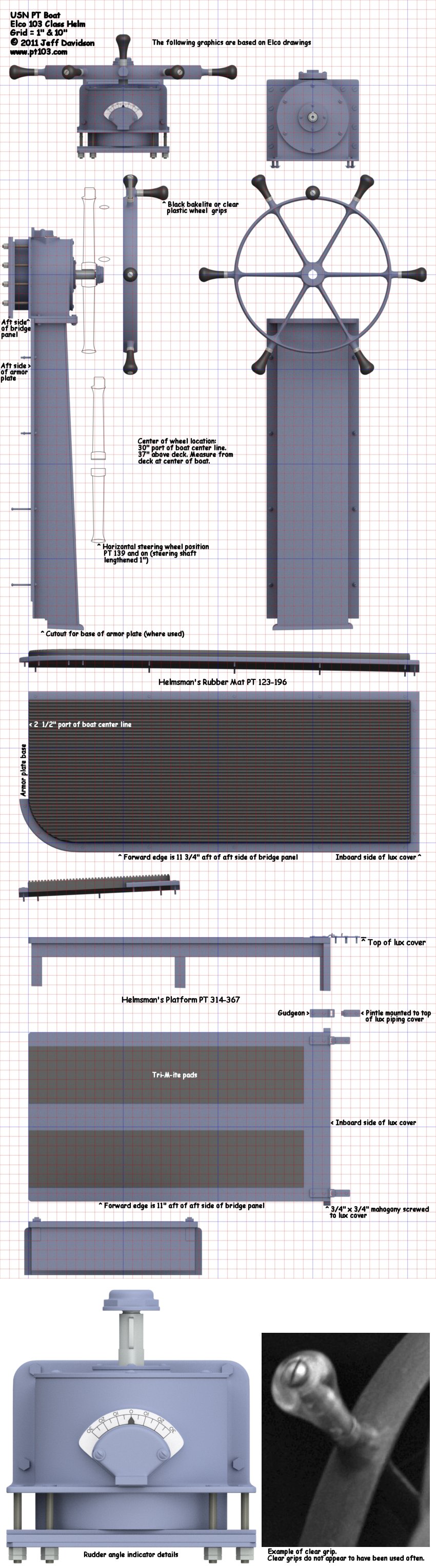

The following image shows dimensions and placement for the helm on Elco 103 class boats. This dimensional image is based on Elco drawings. Please confirm dimensions given here for yourself if errors cannot be tolerated. Images are for non-commercial personal use only, please obtain permission for any other use.

Reference Images
